China Leading Mobile / Portable Dust Collector Manufacturer
With 15 years of experience in industrial dust collection, we’ve delivered over 1,500 customized projects across 20+ countries. FengTu provides efficient, tailor-made mobile / portable dust collectors to help industries meet strict environmental standards.
Models & Specifications

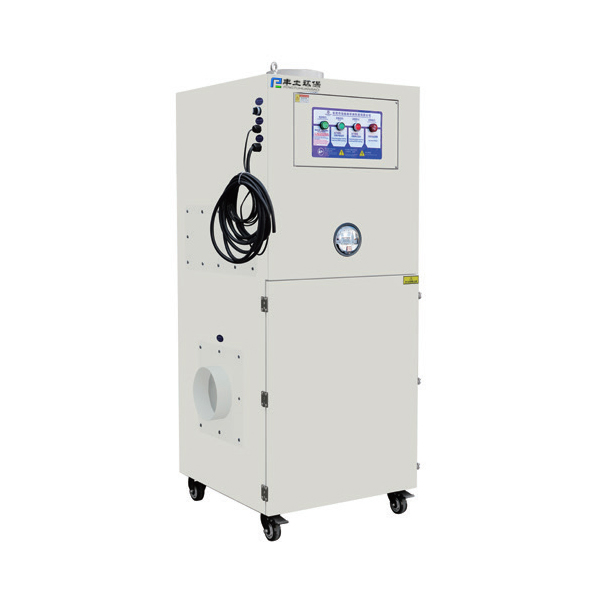

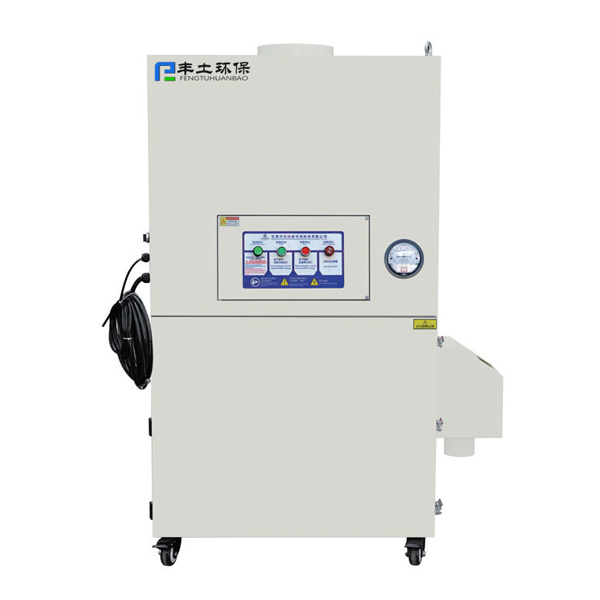

Pulse Jet Industrial Dust Collector
Pulse Jet Cleaning System
Utilizes compressed air to pulse-jet each filter cartridge, generating a reverse airflow opposite to the filtration direction to remove dust from the filter surface. The pulse jet cleaning system provides strong dust removal capability, maintaining a high filtration airspeed.

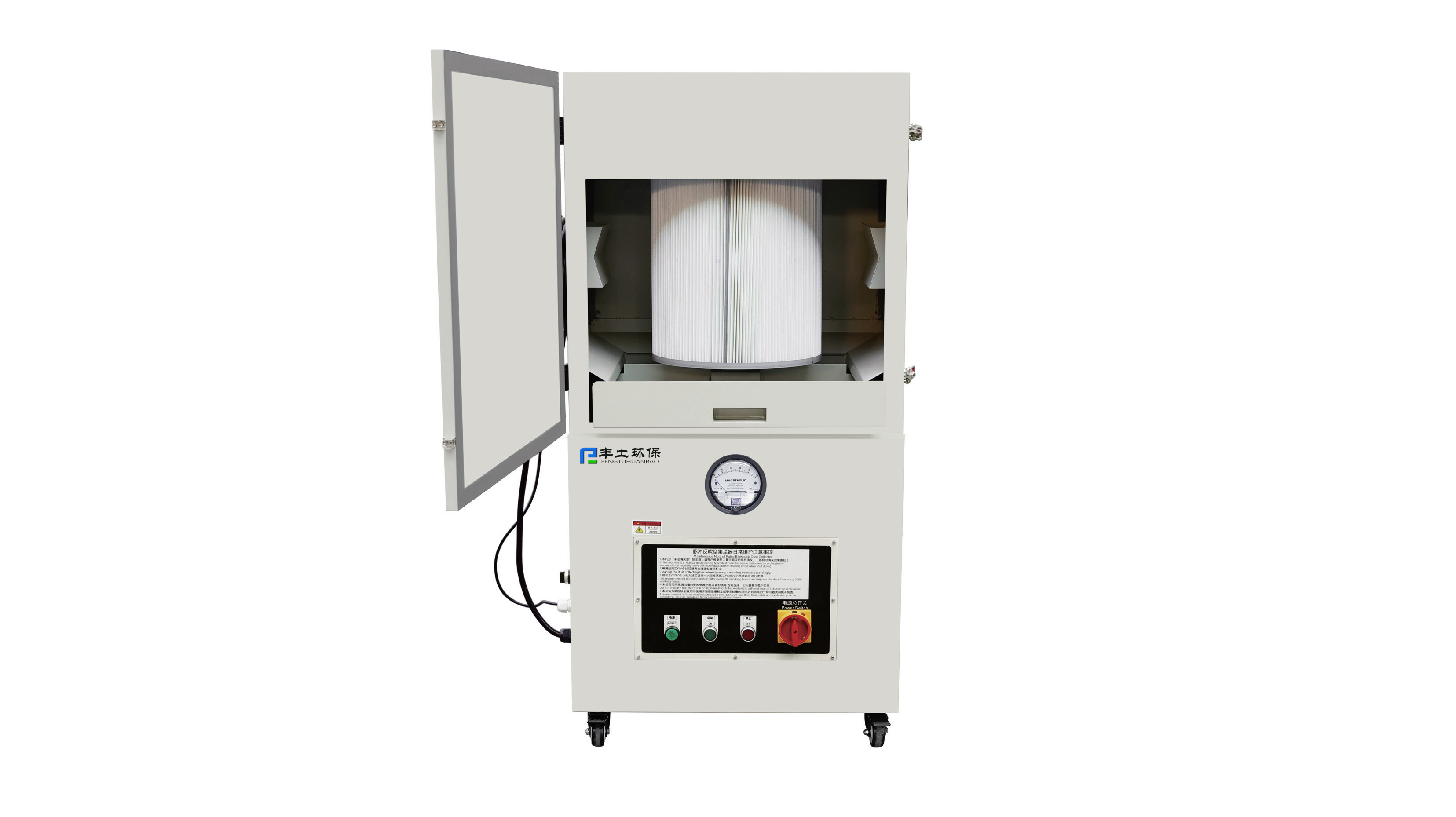

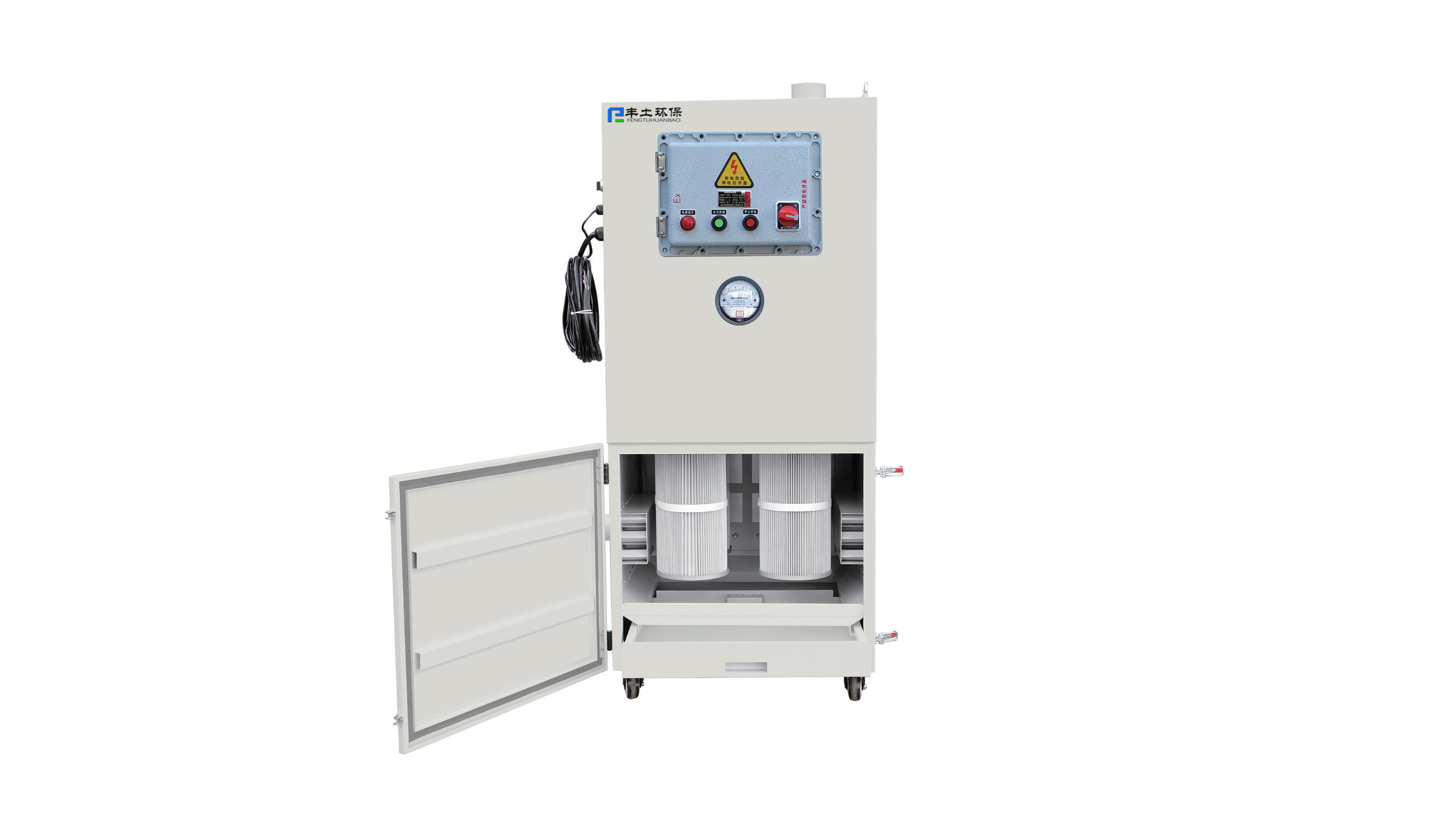

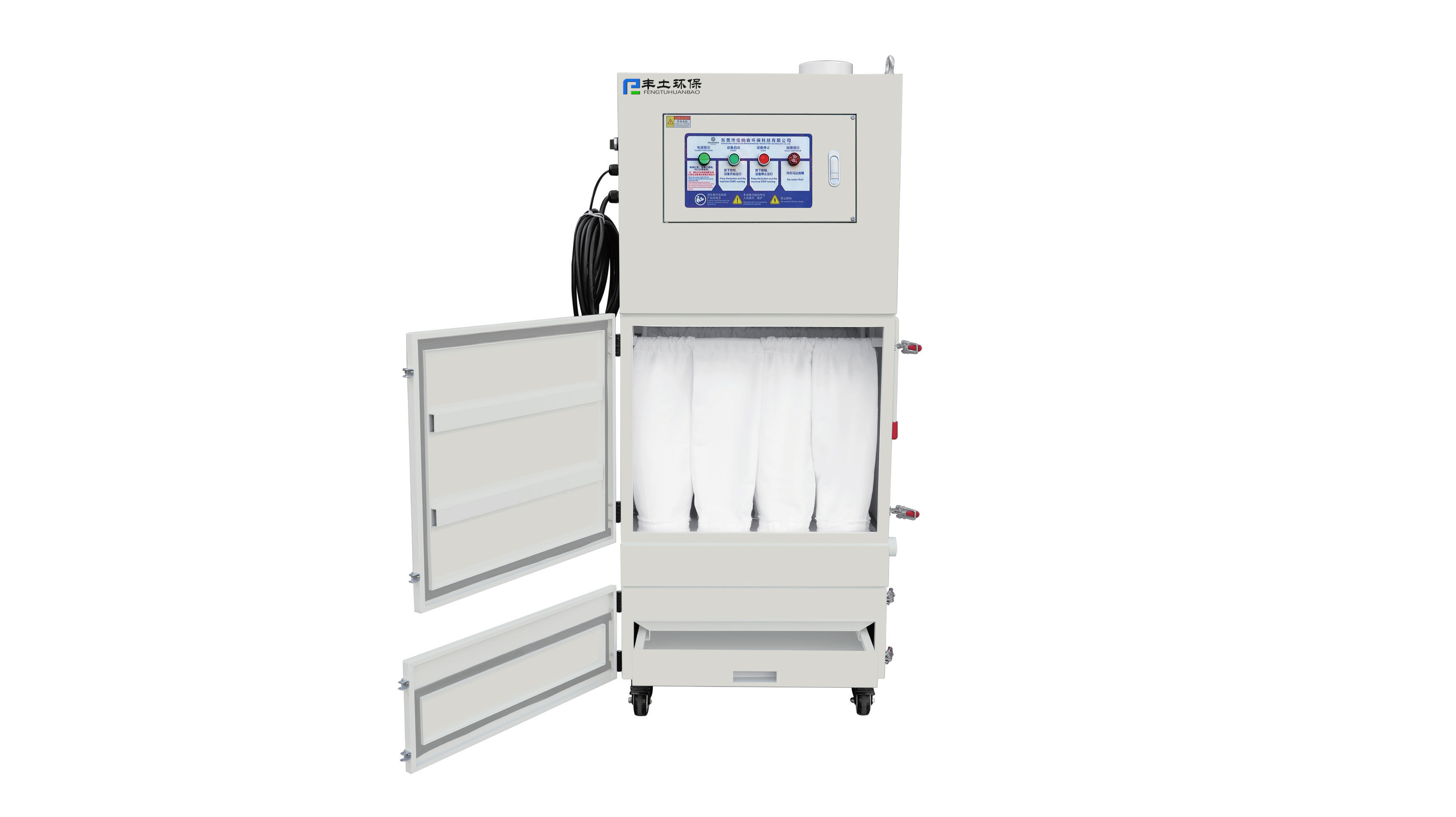

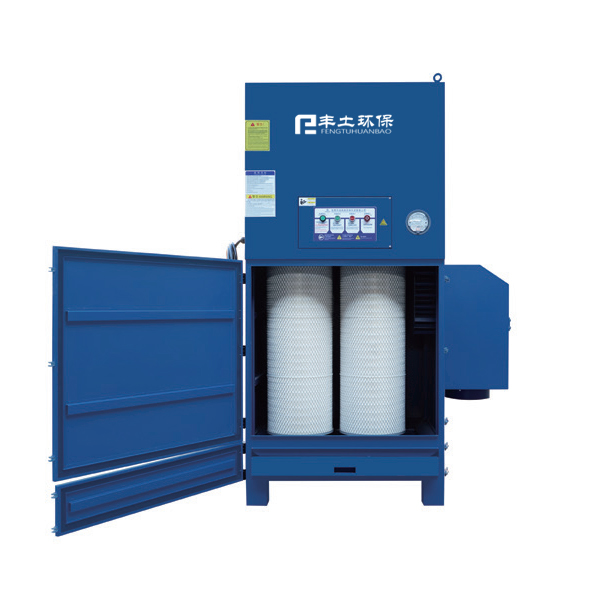

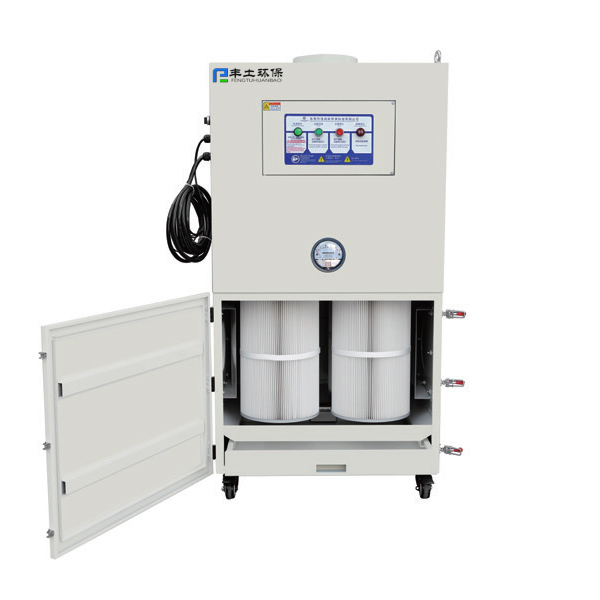

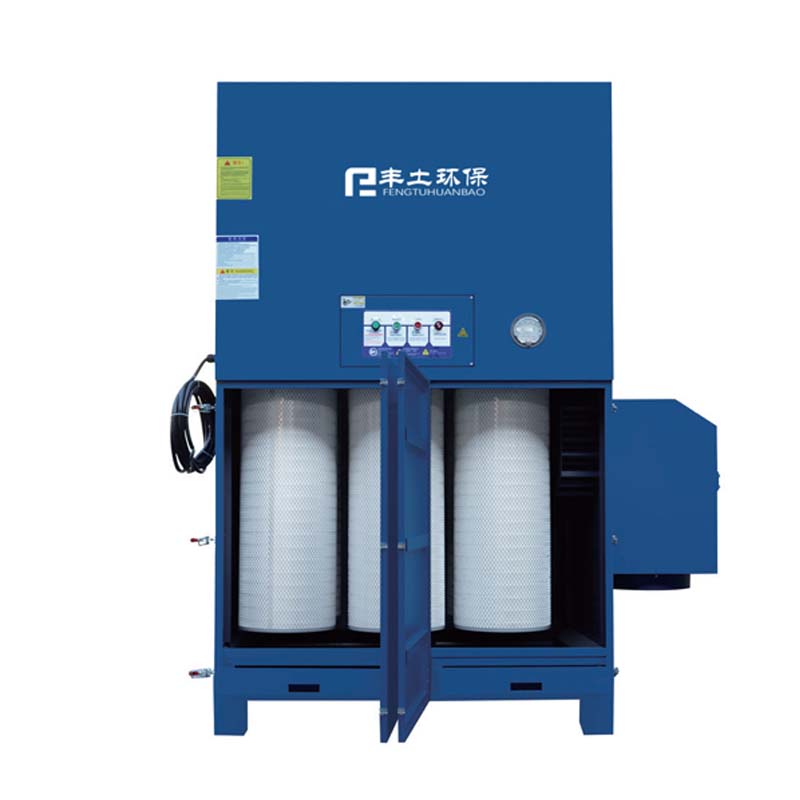

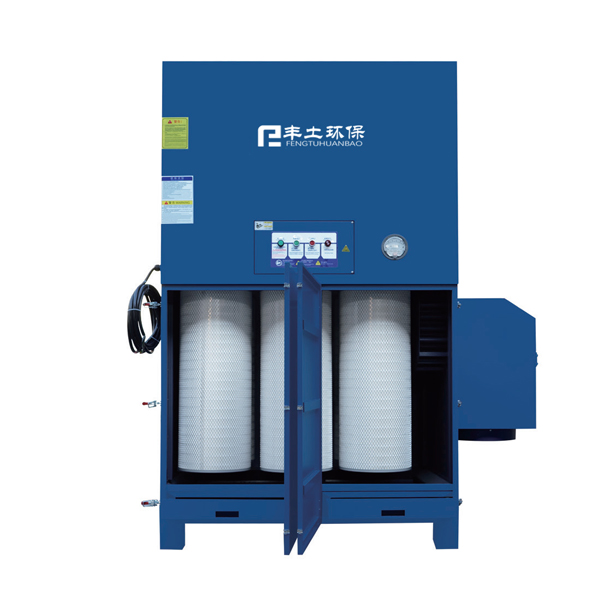

High-Efficiency PTFE-Coated Filter Cartridges
Equipped with PTFE-coated filter cartridges, which effectively capture ultra-fine particles as small as 0.3 microns. The vertical installation design minimizes the machine’s footprint and effectively prevents dust accumulation, which could otherwise reduce the effective filtration area of the cartridges.
Applicable Working Conditions
FT-SD Series Specifications
Mobile: Swipe the progress bar to browse all.
| Model | FT-SD15 | FT-SD22 | FT-SD30 | FT-SD40 | FT-SD55 | FT-SD75 | FT-SD06 | FT-SD08 | |||||||
| Power (kW) | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11 or 15 | 18.5 | |||||||
| Maximum Airflow (m³/h) | 2000 | 2400 | 3000 | 4000 | 5000 | 7000 | 10000 | 15000 | |||||||
| Filtration Area (㎡) | 15 | 15 | 15 / 30 | 15 / 30 | 80 | 120 | 180 | 240 | |||||||
| Filter Material | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | |||||||
| Inlet Diameter (mm) | 150 / 200 | 150 / 200 | 150 / 200 | 150 / 200 / 250 | 250 / 300 | 300 / 350 | 300 / 350 / 400 | 350 / 400 | |||||||
| Number of Filter Cartridges | 2 | 2 | 2 or 4 | 2 or 4 | 4 | 4 | 6 | 8 | |||||||
| Dust Collection Box Capacity (L) | 30 | 30 | 30 / 40 | 30 / 40 | 55 | 55 | 70 | 100 | |||||||
| Dimensions LWH (cm) | 65*70*140 | 65*70*140 | 70*75*143 80*75*143 | 85*85*158 85*85*158 | 96*96*182 | 96*96*204 | 96*134*230 | 96*185*230 | |||||||
| Negative Pressure (Pa) | 1500 | 2200 | 2500 | 3000 | 4000 | 4500 | 5000 | 6000 | |||||||
| Cleaning Method | Automatic Pulse Jet Cleaning | ||||||||||||||
Why Choose FengTu Mobile / Portable Dust Collectors – Key Benefits & Features
Compact & Space-Saving
Small footprint design, ideal for tight workspaces and single-station dust control.
Mobile & Easy to Move
Equipped with lockable caster wheels for effortless mobility.
High Filtration Efficiency
Uses premium TORAY® cartridge filters, reaching up to 99.99% efficiency @ 0.3μm.
Built-in Spark Trap
Standard spark arrestor enhances fire safety when handling flammable particles.
Pulse Jet Cleaning (Auto or Manual)
Available in both automatic and manual filter cleaning models.
Quiet Operation
Noise level as low as 70–78 dB(A), friendly for indoor environments.
Robust Steel Construction
All-steel body with industrial-grade coating, built for durability.
Easy Maintenance
Drawer-style dust bin and quick-access filter chamber for fast servicing.
What Challenges Can We Solve for You?

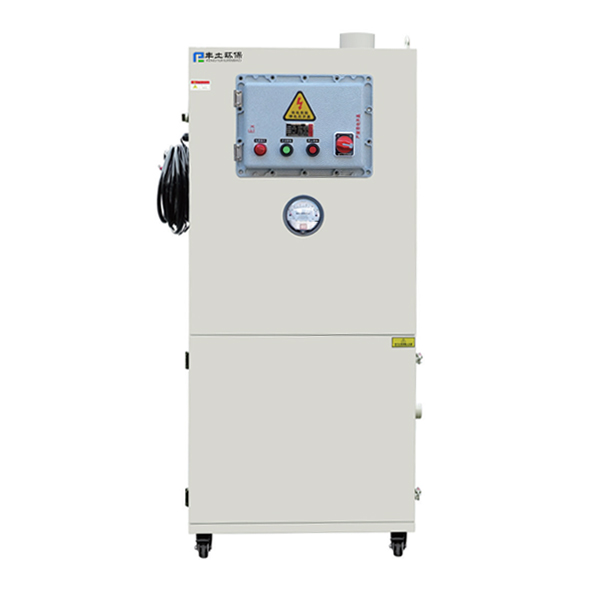

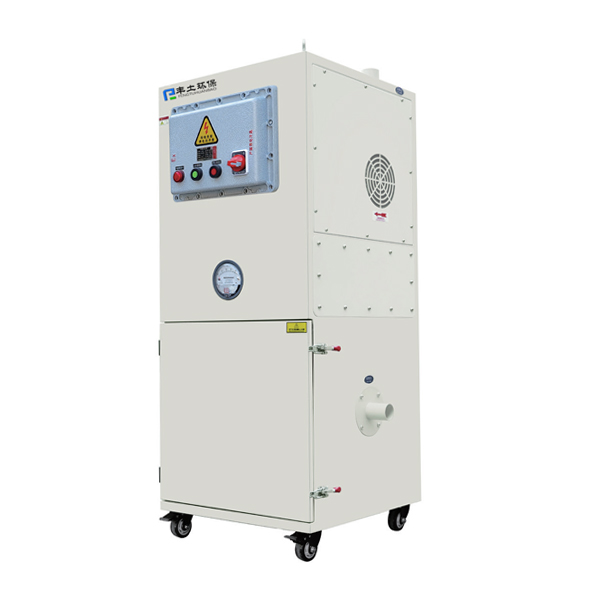

Safety Hazard – Dust Explosion Risk
Solution: Explosion-proof construction with anti-static filter media and pressure-relief paths for complete protection.
Emission Compliance Difficulty
Solution: Achieve up to 99.98% filtration efficiency to reliably comply with local and international regulations.
Safety Hazard – Dust Explosion Risk
Solution: Explosion-proof construction with anti-static filter media and pressure-relief paths for complete protection.
Emission Compliance Difficulty
Solution: Achieve up to 99.98% filtration efficiency to reliably comply with local and international regulations.
Not All Dust Collectors Are Tested Like Ours
Airflow & Volume Balance Testing
Each unit undergoes air volume and flow distribution testing to ensure smooth, balanced airflow without turbulence—maximizing filtration efficiency while minimizing energy consumption.
Sealing & Leakage Inspection
We perform smoke tests and particle leak detection to guarantee tight sealing of all joints and access points, achieving ≥99.98% filtration efficiency with leakage kept under 2%.
Pre-Assembly & On-Site Simulation
Smart Control System Calibration
Each PLC-based control system is rigorously configured and tested for accurate differential pressure monitoring, cleaning intervals, and temperature alerts—enhancing automation, safety, and peace of mind.
FAQ
How can I contact you to purchase a mobile / portable dust collector?
Reach out via email, WhatsApp, or click the “Get Drawings & Quote” button on our website to submit your requirements (airflow, dust specs, etc.). Our engineers will prepare a tailored solution and quote within 1–3 business days.
What payment methods do you support?
We accept T/T (bank wire) payments—typically 50% deposit and 50% balance against the draft B/L. For more flexible terms, please consult your sales representative.
What is your production and delivery lead time?
Small units are manufactured in approximately 15 days, while large, custom systems take around 45 days. Final delivery timing depends on destination and shipping method.
How do you handle shipping and installation?
We offer FOB, CIF, or DDP terms and assist with booking and customs clearance. Each unit is pre-assembled and tested before shipment, with a detailed installation manual included. On-site engineer support is available upon request.
What after-sales service do you provide?
We offer a 1-year free warranty—defective parts not caused by misuse or force majeure will be replaced at no cost. After the warranty, we continue to provide lifetime technical support and spare parts assistance.
