Pulse Jet Industrial Dust Collector
Pulse Jet Cleaning System
Utilizes compressed air to pulse-jet each filter cartridge, generating a reverse airflow opposite to the filtration direction to remove dust from the filter surface. The pulse jet cleaning system provides strong dust removal capability, maintaining a high filtration airspeed.
High-Efficiency PTFE-Coated Filter Cartridges
Equipped with PTFE-coated filter cartridges, which effectively capture ultra-fine particles as small as 0.3 microns. The vertical installation design minimizes the machine’s footprint and effectively prevents dust accumulation, which could otherwise reduce the effective filtration area of the cartridges.
Applicable Working Conditions
FT-SD Series Specifications
Mobile: Swipe the progress bar to browse all.
| Model | FT-SD15 | FT-SD22 | FT-SD30 | FT-SD40 | FT-SD55 | FT-SD75 | FT-SD06 | FT-SD08 | |||||||
| Power (kW) | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11 or 15 | 18.5 | |||||||
| Maximum Airflow (m³/h) | 2000 | 2400 | 3000 | 4000 | 5000 | 7000 | 10000 | 15000 | |||||||
| Filtration Area (㎡) | 15 | 15 | 15 / 30 | 15 / 30 | 80 | 120 | 180 | 240 | |||||||
| Filter Material | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | Ahlstrom / Toray | |||||||
| Inlet Diameter (mm) | 150 / 200 | 150 / 200 | 150 / 200 | 150 / 200 / 250 | 250 / 300 | 300 / 350 | 300 / 350 / 400 | 350 / 400 | |||||||
| Number of Filter Cartridges | 2 | 2 | 2 or 4 | 2 or 4 | 4 | 4 | 6 | 8 | |||||||
| Dust Collection Box Capacity (L) | 30 | 30 | 30 / 40 | 30 / 40 | 55 | 55 | 70 | 100 | |||||||
| Dimensions LWH (cm) | 65*70*140 | 65*70*140 | 70*75*143 80*75*143 | 85*85*158 85*85*158 | 96*96*182 | 96*96*204 | 96*134*230 | 96*185*230 | |||||||
| Negative Pressure (Pa) | 1500 | 2200 | 2500 | 3000 | 4000 | 4500 | 5000 | 6000 | |||||||
| Cleaning Method | Automatic Pulse Jet Cleaning | ||||||||||||||
Not the Dust Collector You Need?
Besides portable dust collectors, we also offer large customized industrial dust collectors. Click the button to learn more.
Baghouse Dust Collector

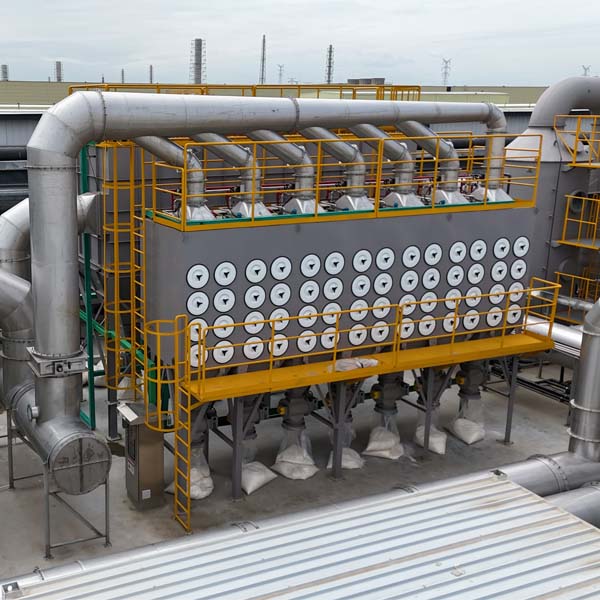

Cartridge Dust Collector
Cyclone Dust Collector

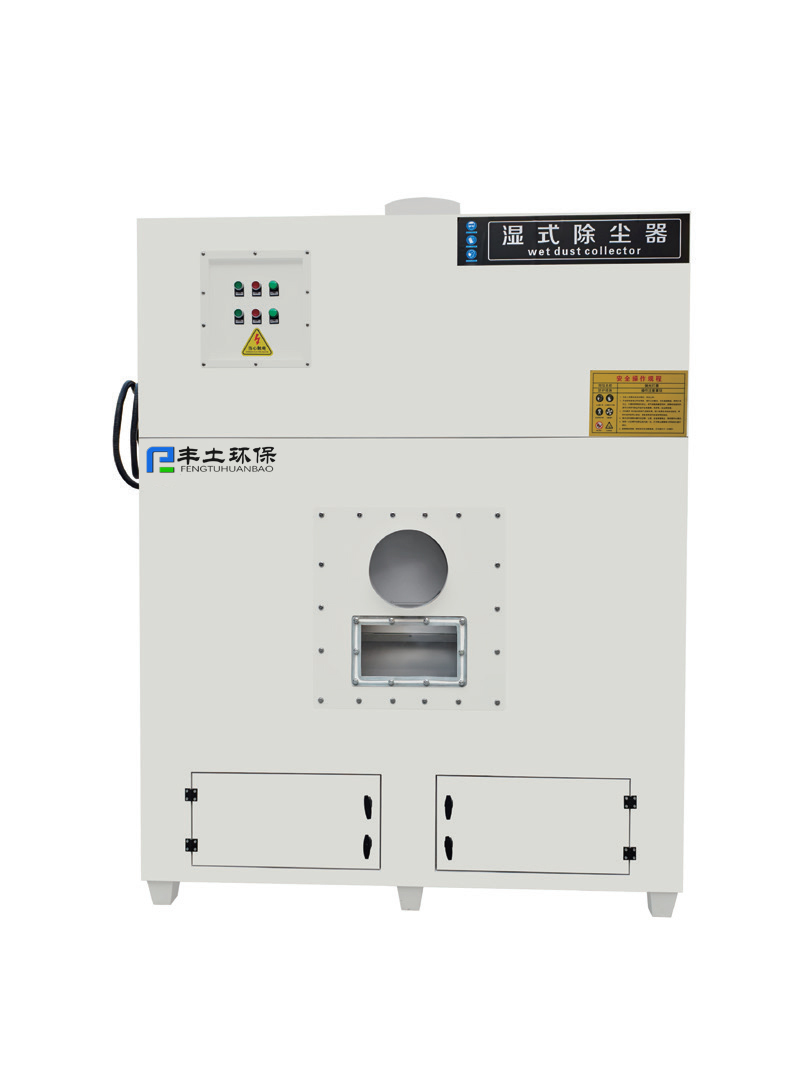

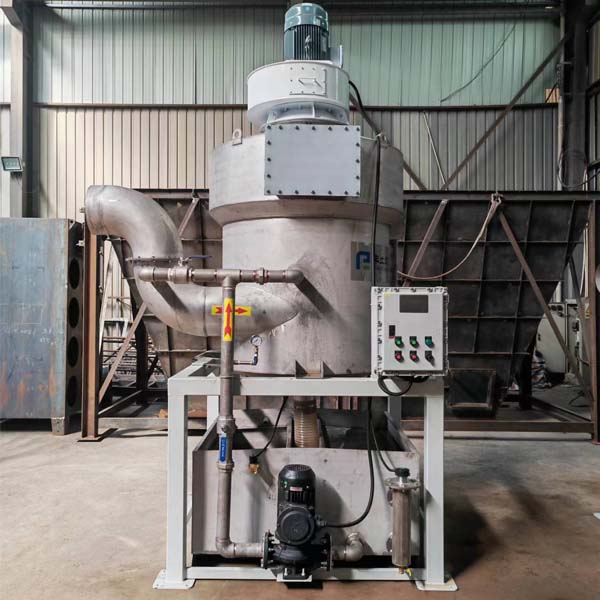

Wet Dust Collector
Why Choose Us
We have over 15 years of industry experience in design and manufacturing, backed by a team of 10+ professional engineers who provide customized solutions tailored to different industries and working conditions.
Our company is ISO 9001 certified and holds explosion-proof qualifications, along with multiple core technology patents, ensuring high safety and reliability.
To date, we have served 1,500+ clients across industries such as metal processing, woodworking, chemical, electronics, food, and automotive manufacturing.
If you have any requirements, please feel free to contact us—we are dedicated to providing you with professional dust collection solutions!
Exporting Countries
Customer Case
Factory area (㎡)
Advantages
High-Efficiency Filtration
Equipped with high-efficiency filter cartridges, achieving a maximum dust collection efficiency of over 99.9%.
PLC Intelligent Control
Features automatic dust cleaning, filter clogging alarm, and variable frequency speed adjustment for smart operation.
Flexible Mobility
Designed with lockable universal wheels, allowing easy movement to different workstations as needed.
Versatile Application
Suitable for welding, grinding, cutting, spraying, woodworking, and electronics manufacturing, effectively handling smoke, dust, and exhaust gases.
How We Manufacture Dust Collectors
Before starting the production of industrial dust collectors, FengTu engineers first create detailed drawings and obtain customer approval to proceed with production. Once all functions and details are confirmed, the drawings are input into our production computer system. The manufacturing process includes material cutting, laser cutting, bending, welding, polishing, assembly, surface treatment, equipment testing, and more. Every detail is crafted and inspected according to your requirements.
FengTu uses pallets, wooden boxes, and steel frame structures for packaging equipment to ensure safe delivery to your destination. If you have any inquiries, please fill out the form to contact us.
